RxMeshStateVector Struct Reference
[Generic]

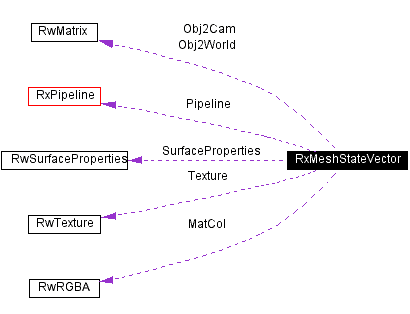

Collaboration diagram for RxMeshStateVector:
Collaboration graph

Data Fields
RwInt32  Flags
void *  SourceObject
RwMatrix  Obj2World
RwMatrix  Obj2Cam
RwSurfaceProperties  SurfaceProperties
RwTexture *  Texture
RwRGBA  MatCol
RxPipeline *  Pipeline
RwPrimitiveType  PrimType
RwUInt32  NumElements
RwUInt32  NumVertices
RwInt32  ClipFlagsOr
RwInt32  ClipFlagsAnd
void *  SourceMesh
void *  DataObject

Detailed Description

Structure describing a mesh-state vector, used by the RxClMeshState cluster

Field Documentation

RwInt32 ClipFlagsAnd


Boolean AND of the RwClipFlag clip flags of all vertices in the mesh
RwInt32 ClipFlagsOr


Boolean OR of the RwClipFlag clip flags of all vertices in the mesh
void* DataObject


Mirrors the void data pointer of RxPipelineExecute
RwInt32 Flags


RxGeometryFlag Flags from the source geometry
RwRGBA MatCol


RwRGBA material color
RwUInt32 NumElements


RwUInt32 number of elements (triangles, lines...)
RwUInt32 NumVertices


RwUInt32 number of vertices
RwMatrix Obj2Cam


RwMatrix to transform from object-space to camera-space
RwMatrix Obj2World


RwMatrix to transform from object-space to world-space
RxPipeline* Pipeline


A pointer to the material pipeline where appropriate
RwPrimitiveType PrimType


RwPrimitiveType primitive type
void* SourceMesh


A void pointer to the source RpMesh
void* SourceObject


A void pointer. In immediate mode it points to an internal structure and in atomic/world-sector object or material pipelines it points to an RpMaterial.
RwSurfaceProperties SurfaceProperties


RwSurfaceProperties

RwTexture* Texture


A pointer to a RwTexture
