RxPacket Struct Reference
[Generic]

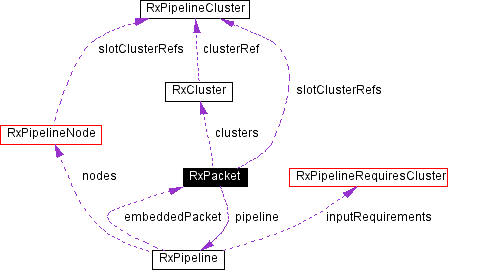

Collaboration diagram for RxPacket:
Collaboration graph

Data Fields

RwUInt16  flags
RwUInt16  numClusters
RxPipeline pipeline
RwUInt32 inputToClusterSlot
RwUInt32 slotsContinue
RxPipelineCluster **  slotClusterRefs
RxCluster  clusters [1]

Detailed Description

A structure describing a packet header

Field Documentation

RxCluster clusters[1]


Cluster array large enough for widest part of the pipeline

RwUInt16 flags


Flags to guide pipeline execution

RwUInt32* inputToClusterSlot


LUT to locate clusters of interest in the packet

RwUInt16 numClusters


Maximum number of clusters simultanesouly present in the current pipeline

RxPipeline* pipeline


The pipeline in which this packet is embedded (the current pipeline)

RxPipelineCluster** slotClusterRefs


Internal Use

RwUInt32* slotsContinue


Bitfields specifying clusters persisting to output node
