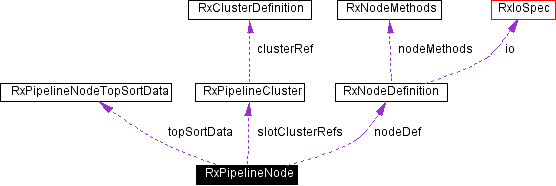

RxPipelineNode Struct Reference
[Generic]

Data Fields

Used by the pipeline node initialisation function in setting up the Private data.

Present so that if the node is cloned we can copy the initialisation data.

LUT to locate clusters of interest in packets passing through this pipeline Node

Node definition reference

Output count

Output array, indexing the pipeline's array of pipeline nodes

Pointer to the pipeline Node's private data

For packets passing through this node, SlotClusterRefs[n] identifies the cluster to be found at index n in the packet's Clusters[] array. These assignments are determined at pipeline Unlock() time and are good for the life of the pipeline.

Cluster persistence table for the node's outputs

Internal Use
