RpPDSSkyObjTemplate Struct Reference
[PlayStation 2]

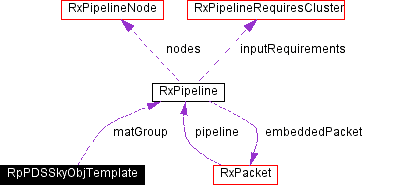

Collaboration diagram for RpPDSSkyObjTemplate:
Collaboration graph

Data Fields
RwUInt32  pluginId
RwUInt32  pluginData
RxPipelineNodePS2AllObjectSetupCallBack  objectSetupCallBack
RxPipelineNodePS2AllObjectFinalizeCallBack  objectFinalizeCallBack
RxPipeline *  matGroup

Detailed Description

This structure should be used to construct object pipelines. RpAtomic and RpWorldSector pipelines can be constructed with this structure and the associated RpPDSSkyObjPipeCreate function.
Note:
The rwPDS_G3_Example_AtmPipe and rwPDS_G3_Example_GrpAtmPipe give examples of constructing the dummy G3_Example object pipelines.
See also:
RpPDSSkyObjPipeCreate , RpPDSRegisterObjPipe , RpPDSRegisterGrpObjPipe , RpPDSRegisterPipe , RpPDSObjTemplate , RxPipelineCreate , RxNodeDefinitionGetPS2All

Field Documentation

RxPipeline* matGroup


Material pipeline to group onto the object pipeline.

See also:
RxPipelineNodePS2AllGroupMeshes
RxPipelineNodePS2AllObjectFinalizeCallBack objectFinalizeCallBack


Per object finalize call back.

See also:
RpAtomicPS2AllObjectSetupCallBack , RxPipelineNodePS2AllSetCallBack
RxPipelineNodePS2AllObjectSetupCallBack objectSetupCallBack


Per object setup call back.

See also:
RpAtomicPS2AllObjectSetupCallBack , RxPipelineNodePS2AllSetCallBack
RwUInt32 pluginData


Plugin extension data.

See also:
RxPipeline
RwUInt32 pluginId


Plugin owning the pipeline.

See also:
RxPipeline
