RxScatter Struct Reference
[Generic]

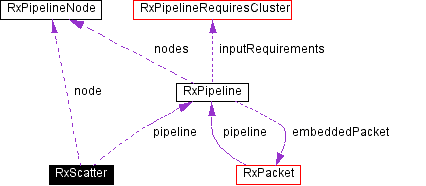

Collaboration diagram for RxScatter:
Collaboration graph

Data Fields
RxPipeline *  pipeline
RxPipelineNode *  node

Detailed Description

Structure used by the RxClScatter cluster

Field Documentation

RxPipelineNode* node


RxPipelineNode pointer, causes Scatter.csl to send the packet to the specified PipelineNode (as long as it is actually one of its outputs!)
RxPipeline* pipeline


RxPipeline pointer, causes Scatter.csl to spit the packet out to the specified pipeline
