RpPDSSkyMatTemplate Struct Reference
[PlayStation 2]

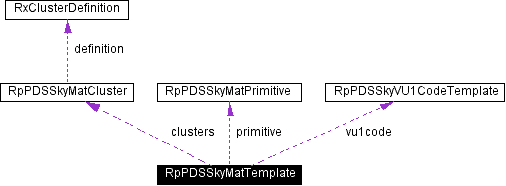

Collaboration diagram for RpPDSSkyMatTemplate:
Collaboration graph

Data Fields
RwUInt32  pluginId
RwUInt32  pluginData
RpPDSSkyMatCluster  clusters [CL_MAXCL]
RpPDSSkyMatPrimitive  primitive
RpPDSSkyVU1CodeTemplate *  vu1code
RxPipelineNodePS2AllMatMeshInstanceTestCallBack  meshInstanceTestCallBack
RxPipelineNodePS2AllMatResEntryAllocCallBack  resEntryAllocCallBack
RxPipelineNodePS2AllMatInstanceCallBack  instanceCallBack
RxPipelineNodePS2AllMatBridgeCallBack  bridgeCallBack
RxPipelineNodePS2AllMatPostMeshCallBack  postMeshCallBack

Detailed Description

This structure defines a material pipeline. It can be passed to RpPDSSkyMatPipeCreate to construct a material pipeline.

All the pipeline structure's members are used whilst constructing the RxPipeline. There are a number of default values which are shared between many of the rendering pipelines.

Note:
The rwPDS_G3_Example_MatPipe and rwPDS_G3_Example_GrpMatPipe show examples of constructing the dummy G3_Example material pipeline.
See also:
RpPDSSkyMatPipeCreate , RpPDSSkyVU1CodeTemplate , RpPDSRegisterMatPipe , RpPDSRegisterPipe , RpPDSMatTemplate , RxPipelineCreate , RxNodeDefinitionGetPS2AllMat

Field Documentation

RxPipelineNodePS2AllMatBridgeCallBack bridgeCallBack


Per material bridge render call back.

See also:
RpMeshPS2AllBridgeCallBack , RxPipelineNodePS2AllMatSetCallBack
RpPDSSkyMatCluster clusters[CL_MAXCL]


Pipeline's instance clusters.

See also:
RxPipelineNodePS2AllMatGenerateCluster
RxPipelineNodePS2AllMatInstanceCallBack instanceCallBack


Per material instance call back.

See also:
RpMeshPS2AllInstanceCallBack , RxPipelineNodePS2AllMatSetCallBack
RxPipelineNodePS2AllMatMeshInstanceTestCallBack meshInstanceTestCallBack


Per material mesh instance test call back.

See also:
RpMeshPS2AllMeshInstanceTestCallBack , RxPipelineNodePS2AllMatSetCallBack
RwUInt32 pluginData


Plugin extension data.

See also:
RxPipeline
RwUInt32 pluginId


Plugin owning the pipeline.

See also:
RxPipeline
RxPipelineNodePS2AllMatPostMeshCallBack postMeshCallBack


Per material post bridge render call back.

See also:
RpMeshPS2AllPostMeshCallBack , RxPipelineNodePS2AllMatSetCallBack
RpPDSSkyMatPrimitive primitive


Primitive and VU1 memory setup variables.
RxPipelineNodePS2AllMatResEntryAllocCallBack resEntryAllocCallBack


Per material resource areana allocation call back.

See also:
RpMeshPS2AllResEntryAllocCallBack , RxPipelineNodePS2AllMatSetCallBack
RpPDSSkyVU1CodeTemplate* vu1code


VU1 Rendering code setup.

See also:
RxPipelineNodePS2AllMatSetVU1CodeArray
